MAX버전에 AG01짐벌을 장착한 모델입니다.
RadioMaster TX16S Mark II Max (AG01 Hall Sensor gimbal ver.)
- 세계적으로 폭발적인 인기를 끌고 있는 조종기입니다.
- AG01 홀센서 짐벌을 사용합니다.
- EdgeTX 펌웨어가 기본 적용되어 화면 터치기능을 사용하실 수 있습니다.
- USB포트를 통해 조종기 자체적으로 배터리를 충전할 수 있습니다.
- 멀티모듈을 탑재하여 완구형 드론부터 후타바, Frsky, 스펙트럼 수신기까지 모두 사용할 수 있습니다.
- TBS 크로스파이어 모듈과 완벽 호환됩니다.
- 레이싱드론을 위한 최고의 선택입니다.
**본 제품은 4 IN1 모듈입니다.**
**충전기 출력은 최대 2.2A를 넘어서는 안됩니다.**
<구성>
조종기 1개
18650 트레이 1개
USB 케이블 1개
LCD 보호필름 1개
넥스트랩 1개
리어그립 1세트
TX16S 키체인 1개
국내 정식 전파인증된 제품입니다.
전파인증 번호 : R-R-ssr-TX16S
인증스티커는 뒷 모듈커버 안쪽에 있습니다.
<A/S 안내>
- 1년 무상 워런티 제공(추락, 수장, 역전압, 펌업, 그외 파손에 의한경우 제외)
- 1년 경과 시 유상수리 진행
- 수성RC 고객센터 : 070-7715-2211
<배터리 추천 및 충전 안내>
- 배터리는 아래 링크의 18650배터리 2개 사용하시면 됩니다.
- 배터리를 조종기에 넣어놓은 상태로 휴대폰 충전기로 자체충전이 가능합니다.

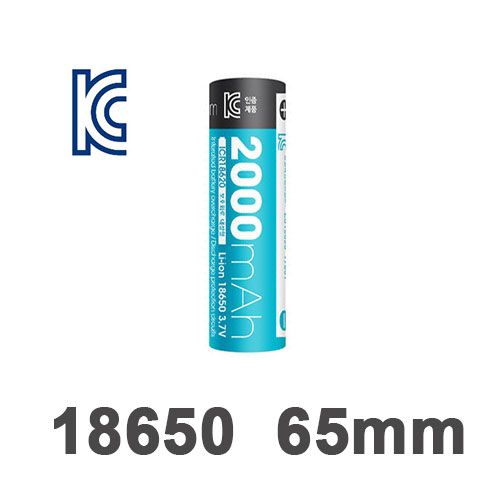

18650 2000mAh 보호회로적용(65mm, 표준사이즈) <- 바로가기

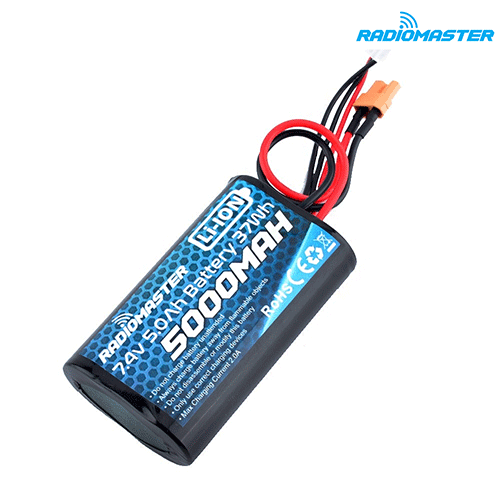

TX16S용 2셀 5000mAh 배터리(Li-ion) -> 바로가기
2셀 6200mAh 배터리(Li-ion) -> 바로가기
Bullet Point
Improved internal circuity and optimized power supply.
New charge circuitry with integrated reverse-polarity protection.
Optimized charge IC now allows up to 2.2A internal USB-C charge current.
Rear mounted audio jack provided headphone output.
V4.0 Gimbal improved centering and temperature stability (Same circuitry as AG01).
Optional high/low rear grips included for improved ergonomics.
Improved S1/S2 knobs with clear centre-detents.

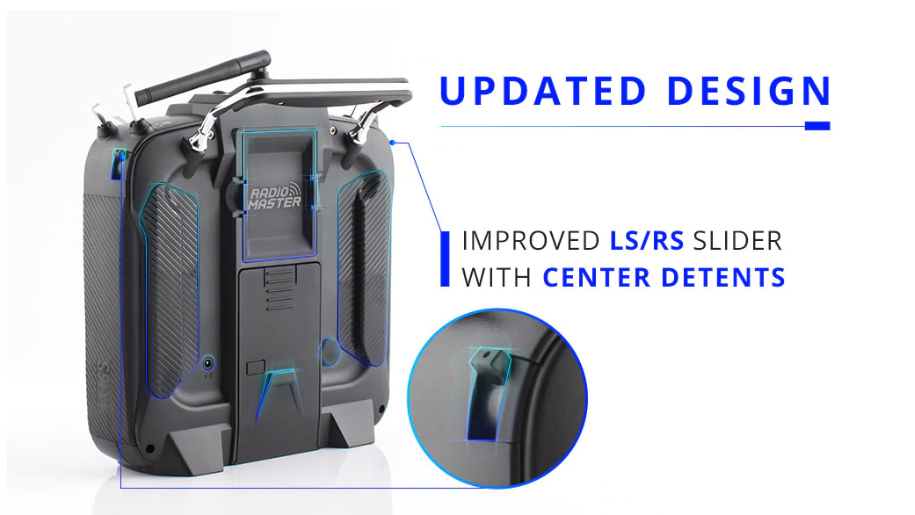

Improved LS/RS Sliders with smoother feel and better centre-detents.
Redesigned battery cover for improved battery access.
Retooled body shell with improved fit and finish.
Trainer socket changed to standard TRS 3.5mm socket.
Rear DIY Socket added for personalised mods.
Improved internal plastics for better longevity.
Available ELRS and 4in1 versions.
Specification
Size: 287x129x184mm
Weight: 750g (without battery)
Transmission frequency: 2.400GHz-2.480GHz
Transmitter module: Internal 4-in-1 multi-protocol module (CC2500 CYRF6936 A7105 NRF2401)
Transmitting power: Internal 4-in-1 multi-protocol module : Max 100mw (protocol dependent)
Antenna gain: 2db (transmit power adjustable)
Working current: 400mA
Working voltage: 6.6-8.4v DC
Remote control distance:> 2km @ 22dbm
Radio firmware: EdgeTX
Module Firmware: Multiprotocol- Module (4IN1)
Channels: Up to 16 channels (depending on the receiver)
Display: 4.3-inch TFT full-colour touch display with a resolution of 480 * 272
Gimbal: V4.0 Hall sensor with Aluminium fascia
Module Bay: JR compatible module bay
Upgrade method: Supports USB-C online / SD card offline upgrade
Support EdgeTX and OpenTX
EdgeTX is installed by default (Touch screen enabled)
* Requires EdgeTX version 2.6.0 or OpenTX version 2.3.15 or later.

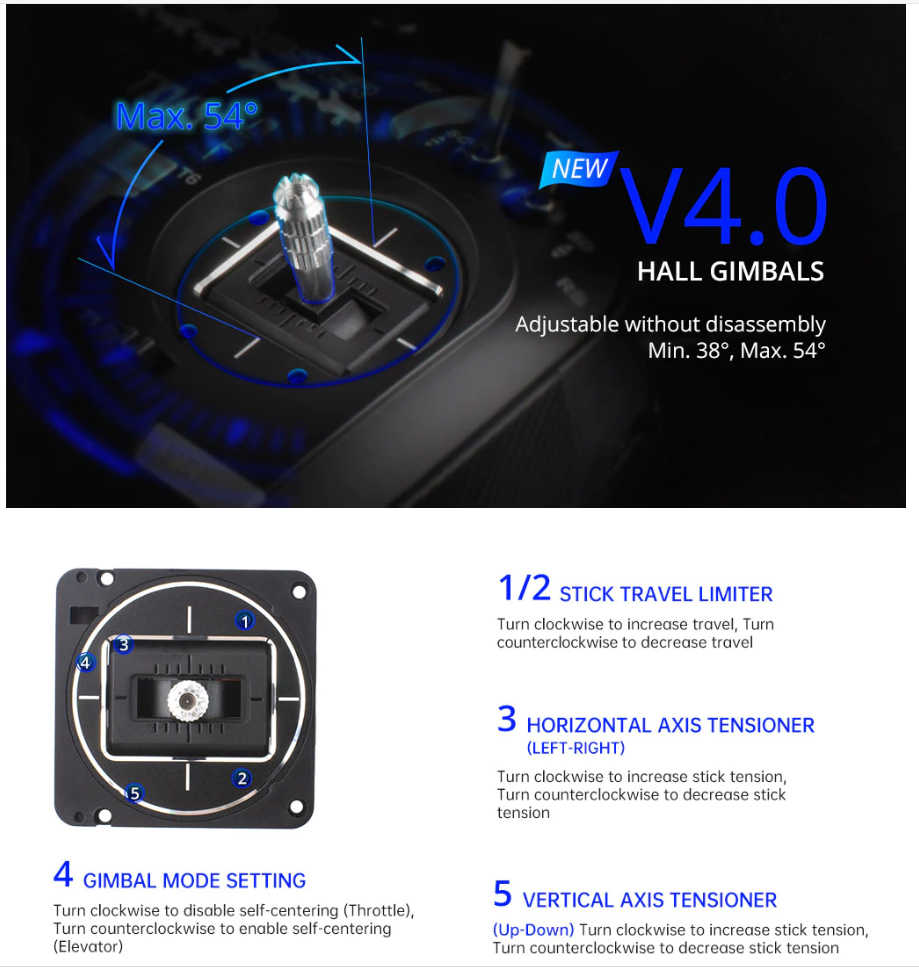

V4.0 Hall Gimbals
Standard version with V4.0 Hall Gimbals, same chipset as the AG01, optimized hall sensor circuitry,
improves center point positioning and temperature stability. Stick travel, self-centering and stick tension are now externally adjustable.
AG01 GIMBALS
AG01 Gimbal is fully CNC milled for ultimate precision with quad ball bearings for a smooth and precise feel.
Featuring front-accessible tension and travel adjustment for easy fine-tuning.
Flat & Raised Grips Included
Both the raised and flat versions of the rear grips are included allowing you to customize the feel of your TX16s MKII right out of the box.

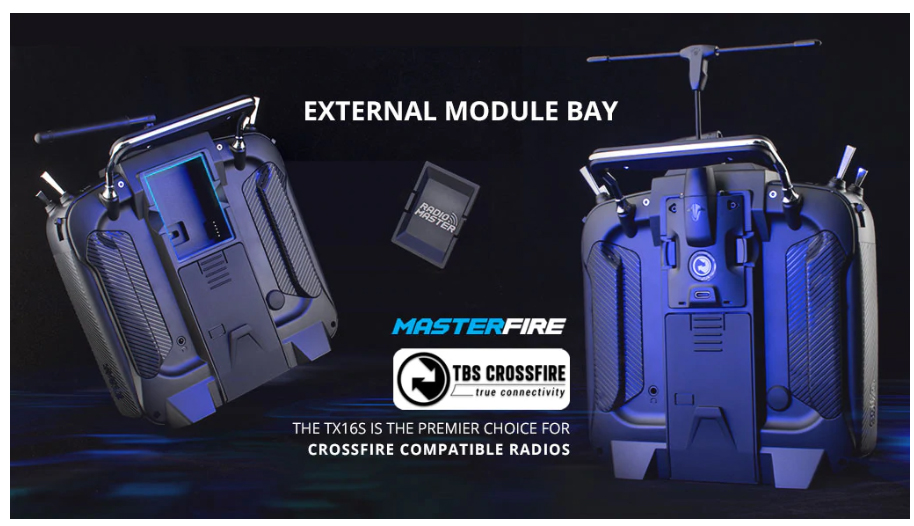

External Module Bay
The TX16s natively supports Team Black Sheep MicroTX modules in CRSFmode with LUA scripts.
Best of all the TX16s Internal 4-in-1 Multi-protocol module allows you to keep the MicroTX installed and
switch between internal RF and Crossfire via software, no more module swapping.

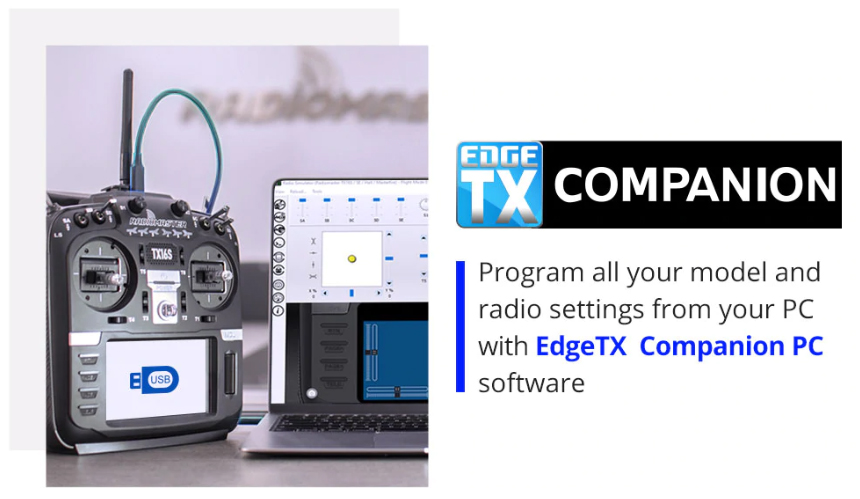

Easy Firmware Updates
Upgraded Design
Retooled faceplate with improved fit and finish
Improved S1/S2 knobs with center detents
4.3” IPS Color Display - The TX16s features a bright and clear 4.3-inch IPS color display for easy and convenient model setup and operation with adjustable brightness to suit all conditions.
New 3.5mm Audio jack - Rear mounted audio jack minimizes RF interference from external modules and adds headphone audio feature.
Redesigned battery cover, easier to remove.
Rear DIY Socket added for personalised mods.
<모드 변경 방법>
